Description

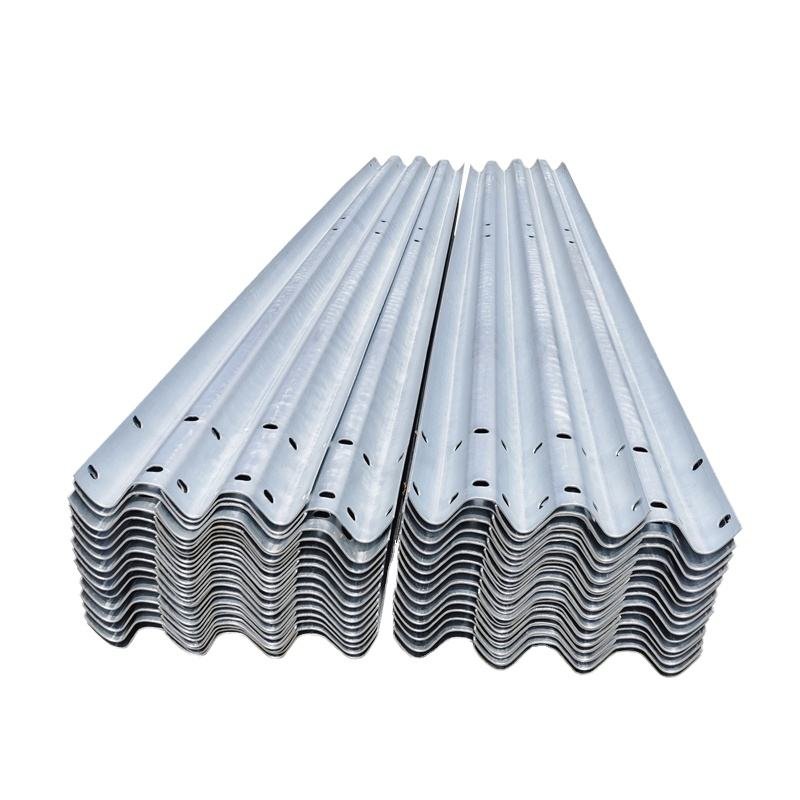

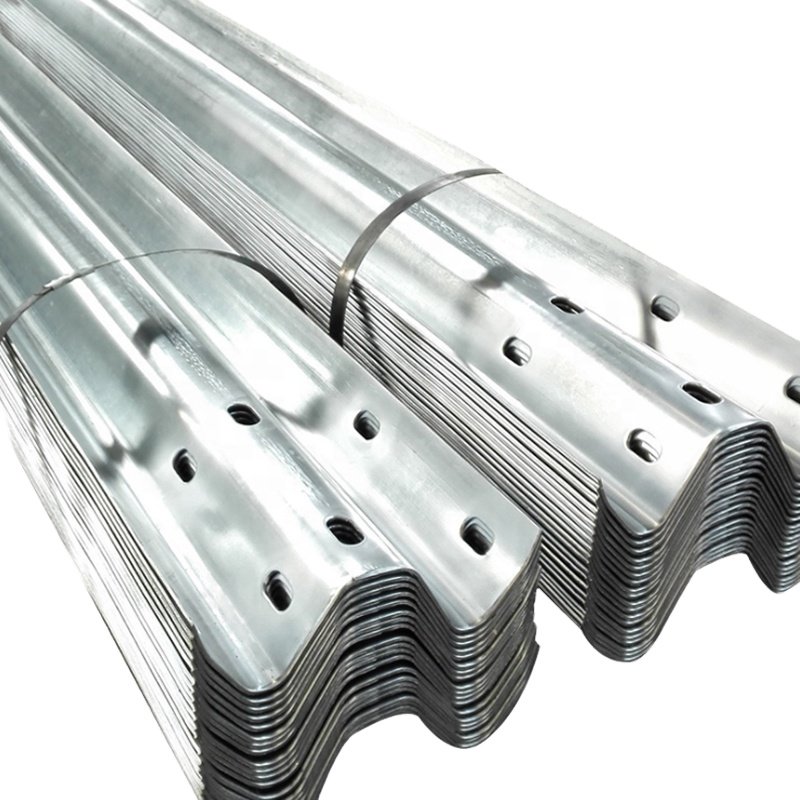

W Beam Steel Highway Guardrail
W-Beam guardrails are the most commonly used type of highway barrier. They consist of a series of steel beams shaped like a “W,” which absorb impact energy and redirect vehicles back onto the roadway.
Product | Size (L * W * WW * WH * T） | Ordinary type Quantity per KM | Reinforced type Quantity per KM | Coating Treatment |
Thrie-beam | 4320*506*85*3/4 mm | 250 Pcs | 250 Pcs | Hot Dip Galvanized: Powder spraying: |
Post | 2150*130*130*6mm/ 2150*140 * 4.5mm | 251 Pcs | 501 Pcs | |
Bracket | 300*70*4/4.5mm | 251 Pcs | 501 Pcs | |
Spacer Block | 178*196*200*4.5mm | 251 Pcs | 501 Pcs | |
Post Cap | Φ140mm | 251 Pcs | 501 Pcs | |
Washer | 76*44*4mm | 251 Pcs | 501 Pcs | |
Bolts & Nuts | M16*35mm | 2000 Sets | 2000 Sets | |
Bolts & Nuts | M16*42mm | 251 Sets | 501 Sets | |
Bolts & Nuts | M16*150/170mm | 251 Sets | 501 Sets | |
Terminal End | R160 | 2 Pcs | 2 Pcs | |
Notes | 1.Shape:Three waves, Thrie-beam 2.Normal Specification: 4320*506*83*3mm. Other different sizes are available. 3.Highway guardrail Standards: JT/T281-2007，AASHTO M-180, RALRG620,SPS98S 4.Steel Material: Q235, Q345, S235JR, S275JR, S355JR 5. The thickness of the steel: 2.75mm, 3mm, 4mm or based on consumers’ request. 6. Surface treatment: hot-dip galvanized and galvanized plastic spraying coating. 7.Guardrail relevant parts: Post, Spacer (C, U,H, Round, Square and Sigma types etc) and Fasteners, Bolts & Nuts, Terminal,Reflectors 8. Certificate: ISO9001:2015 | |||
